The Sun in H-alpha with latest ZWOptical ASI174MM mono camera :
Fluorite Perl-Vixen 102/900 refractor, Coronado SM90+BF30
Options : PST etalon (DS configuration) and/or 1.6x barlow, JMI focuser (see setups here)

In this page most images are not in full, click to see if full size present ...

See SETUP of FIRST LIGHT here

20150511 Halpha DS
(same setup as
20150510)
(hazy conditions)




Flat done inside Firecapture ... Last image with 1.5 Drizzle in AS!2!

20150510 A really good Halpha DS setup (III) ... The sleeping lion face !

Active zones ...





20150506 (See also PST-DS images)

Today iI used this DS configuration with a barlow (II) !
Only part of the sensor is illuminated ...
The problem is to arrange the parts to be able to achieve focus !







2335 and 2339 sunspots





20150429 (See also PST-DS images)
A long filament again ...

20150427 ..... going DS ->       See the double stack setup (I) !

In this page if image looks small, click on it to enlarge ...


Click image below for special filament curves graph in Astra Image 3.0 ...



       PST-DS full Sun :



20150423

20150422


13:29+ UT (Interval 1min)

20150421

(Barlow 4x Simple Stack configuration)

Above (only) PST DS Image (observed flare M1 will be at 3:30 position)
Below all with Fluorite 109/900, Coronado SM90 T90 + BF 30

drifting capture. PSP processing of the prominence zone with lasso around it (for more contrast and gamma)

(about 1 min interval, 10:56 UT +)


  Final ring (about 1 min interval, 16:13 UT +) ...

MORE TO COME ...



20150414 (times in UT) ... Happened during the live broadcast !

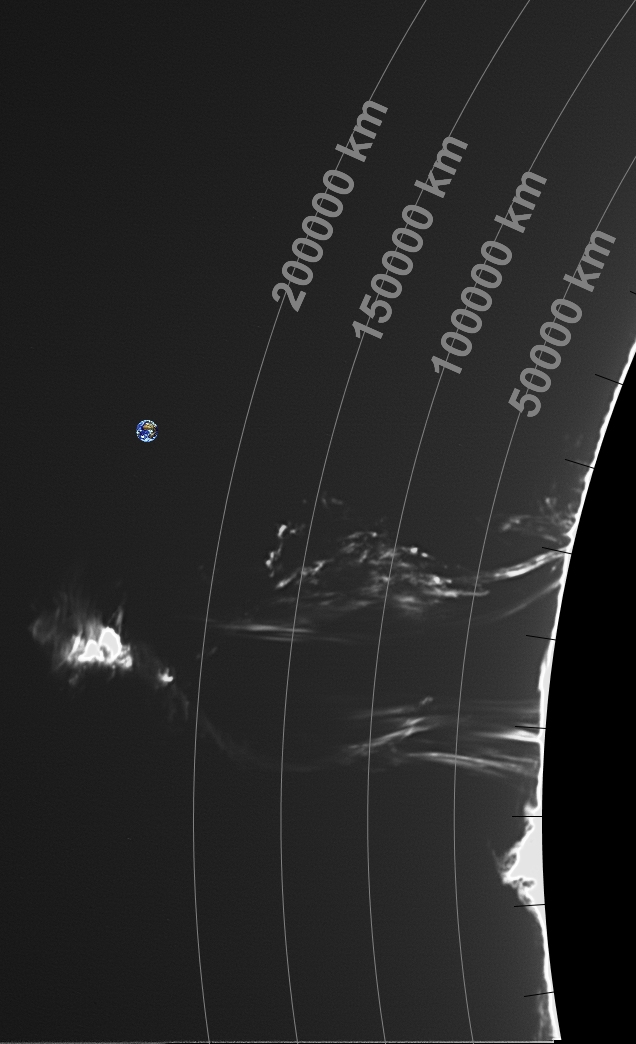

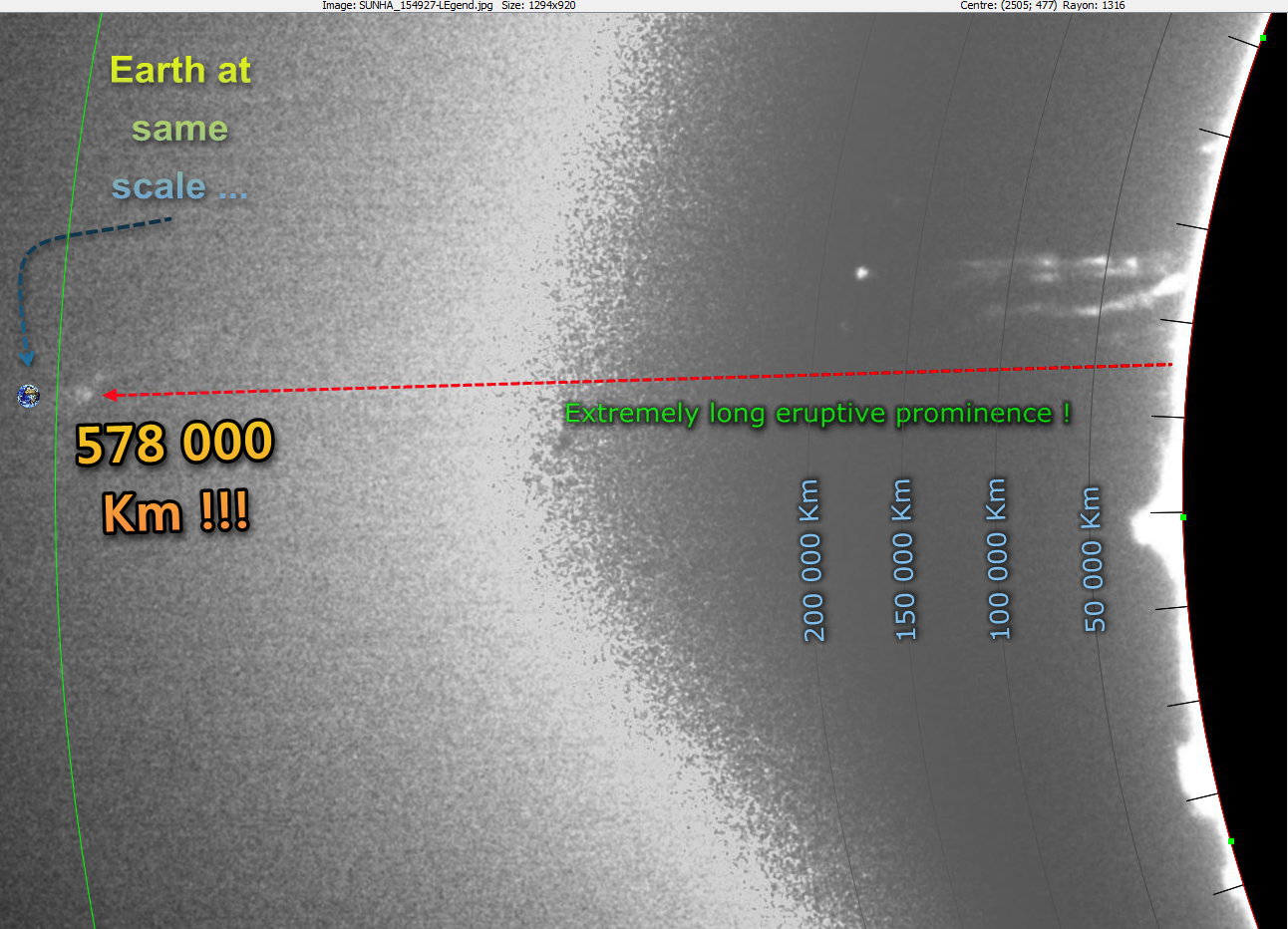

Unbelievable height eruptive prominence with coronal ejection !!

See special curve use in the image below (15:49:27) to enhance the tip of the prominence (click for larger) ...


BTW it went still further from the Sun but image gets to difficult to display ...
Click on the above image to see another one bit before (15:44:03) in original capture JPG !

Visit Spaceweather.com date 2015/04/15 for comments !

Lower part of the prominence in its beauty (the top was cut by AS!2 registration in monitoring mode) !!



15:08:57 15:11:58

15:13:59 15:20:01



Early stages starting at time of discovery during the Live (14:49:39 UT) ...

Position of the future eruption

New sunspot

New sunspot AR2331 AR2322

All image below thanks to Firecapture JPG saving at begining of .SER file (registration did cut the top of these as seen on image just above)!

14:49:39

14:59:42 15:00:46

15:01:46

15:04:47 15:05:48 15:06:36 15:07:36

All image of the early sequence processed for the tornado ...

15:00:46

15:00:46 15:01:46

15:03:47

RegiStax6 : WSL1_1G_WVb400g100v1000_HIRGB_0_110_G100

Gamma 3 .. 5
Level seuil 28000 .. 50000
LRD 0.6 12i

15:04:47 15:05:48 15:06:36 15:07:36




PV fluorite 102/900, Coronado SM90 + BF30, 1.6x Antares barlow, ASI174MM

Thanks to FireCapture v2.4.10, AS!2 monitoring mode (planet), Irfanview, SpyFolder V0.19, LUSol3D, PSP


20150409 Another Giant Mosaic !

Click on image for full size !!
PV fluorite 102/900, Coronado SM90 + BF30, ASI174MM

FireCapture v2.4.10 Settings
------------------------------------
Observer=sweiller Location=STR Scope=Fluo102/900 Camera=ZWO ASI174MM Date=090415 Around 10:16 UT (16 min total acquisiton time) Duration (each) =30.205s
Frames captured (each) =1236 File type=SER Binning=no Bit depth=16bit ROI=1936x1216 FPS (avg.)=40 Shutter=10.00ms Gain=80 SoftwareGain=10 (off) Gamma=50 (off)
USBTraffic=60 Limit=30 Seconds Sensor temperature=28.1 °C

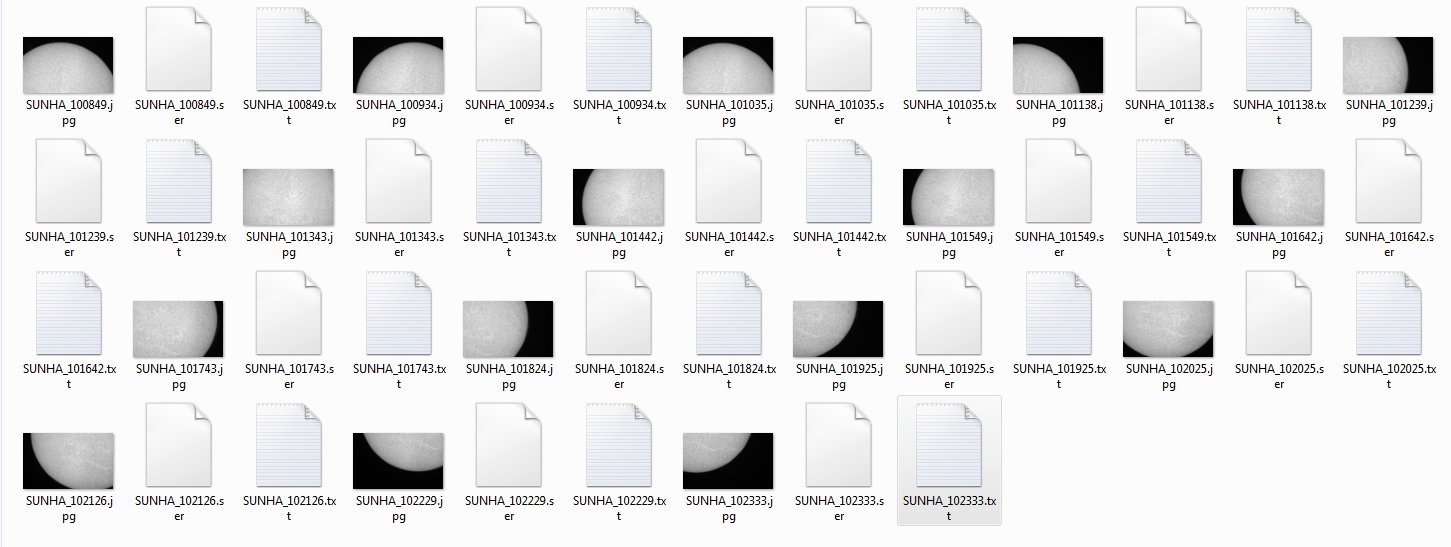

Start of capture : 10:08:50 UT, end : 10:24:04 (Atomic clock) see below aspect and dates :

16 bit Operations :

16 fields captures with at least 30% in commun otherwise ICE stitching software will not accept to make the mosaic.
AS!2 Registration at first with 10%, 25%, 50% & 95% best images kept.
Finaly : only 10% frames series kept (Best thanks to people of french lists help to decide to 10%, 25% being second choice!)
Astra image 3.0 LRD 0.60 11i

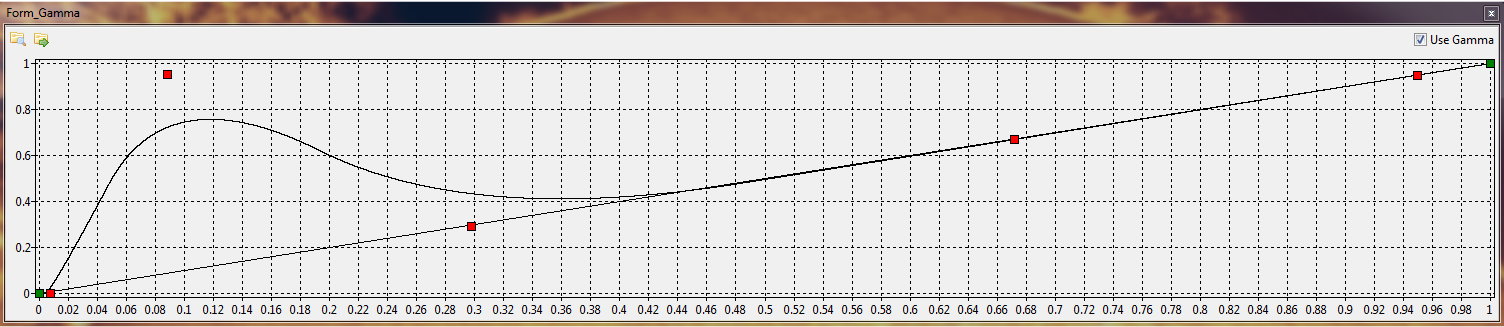

WX gamma curve to enhance - thanks to the 12 bit capture (which is saved as 16 bit) - the prominences, see aspect MosaBarlow16Coronado90-16b.GSI
R6 Crop (cutting about 10 pixels on each side because generally this zone is corrupted by the sharpening process) & save as PNG

8 bit Finalisation :

ICE in five part first otherwide bad (not round Sun + setbacks) : top, midH, center,midL, bottom
GIMP2 : Map Sample colorize from another previously colored image.

! Full size PNG Color 11MB, GrayScale 19 MB !


20150401 INCREDIBLE forest of prominences !

Apart from April fool prominence at left where there were nothing significant to show, the rest of the image of the Sun is real ! Clic for full size !

PV fluorite 102/900, Coronado SM90 + BF30, ASI174MM
Capture Firecapture V2.4.09

FireCapture v2.4 Settings (for right part of 2 field mosaic)
------------------------------------

Date=010415
Start(UT)=111418
Duration=60.041s
LT=UT
Frames captured=1578
File type=SER
Bit depth=16bit
ROI=1936x1216
FPS (avg.)=26
Shutter=9.000ms
Gain=85


Processing : Registration AS!2 RGB mode Output PNG 16b, Deconvolution Astra Image 3.0 (LRD 0.56 16i
, Special Curves for prominences in 16b Wx, Pano PSP with layers, colorization and morphing GIMP2

20150331 Nice prominences !

Full HD ! Clic on pano for full size ... 2323x1063 !

PV fluorite 102/900, Coronado SM90 + BF30, ASI174MM
Capture Firecapture V2.4.09

FireCapture v2.4 Settings
------------------------------------

Duration=60s
3 fields x frames captured=1992
File type=SER
Bit depth=16bit
FPS (avg.)=33
Shutter=10.00ms
Gain=85
USBTraffic=60

Processing : Registration AS!2 RGB mode Output PNG 16b, Deconvolution Astra Image 3.0 (LRD 0.56 18i, Gamma 16b Wx, Pano Microsoft ICE, PSP, colorization GIMP2

Notes :
With the same 16b images, 2 panos have been made. One (a) with the prominences lightened via Gamma, one (b) without gamma.
Then in PSP (a) has been loaded in background.
In (b) a selection has been made with the magic selector on black background with progressivity 1 and tolerance 70.
The selection has been inverted and pasted on (a).
The result is nice prominences and a contrasted disk !
(gamma for the prominences and disk is possible but not so nice and the center of the sun spot is also lightened !)


20150327 Awsome prominences !

Time : 114522

122318

130444

PV fluorite 102/900, Coronado SM90 +BF30, ASI174MM
Processing : Pipp, RegiStax6, Astra Image 3.0 SI (LRD 0.6 10i , Corono, GIMP2

133407

PV fluorite 102/900, Coronado SM90 + BF30, ASI174MM
Processing : RegiStax5, Astra Image 3.0 SI (LRD 0.6 10i, MED 0.4 30, + complex up/down/up curve), GIMP2



See the huge size of this prominence ... about 20% of the Sun diameter before disappearing !
Processing : Pipp, RegiStax6, Astra Image 3.05.40 (LRD 0.56 18i), Corono, GIMP2
Click for full size


Clik on SDO image for larger view

20150311 12:42:37 UT (click on image for 100% size)

Fluorite 102/900 + Coronado SM90/T90 + BF30 + 4x 2" Televue barlow a ASI 174MM,
Registration AS!2, Processing Wx, Color with GIMP2


AR 2297 X1 flare (16:24 UT) !!!
Fluorite 102/900 + Coronado SM90/T90 + BF30 + ASI 120MM-S, 30s 16b SER file.
Left as it shows during capture because of clouds, right after processing with Wx.




Registration with RegiStax5
Click on images for full size XVID
Note : For normal speed wait for the Astromovie below to download ... this mean at least the 2nd pass !





20150304 15:12:30 UT (click on image for 100% size) ... 2 processing techniques !

Today I tried a rather difficult but powerful combinaison : Coronado SM90 + PST FP + 1.6x barlow,
then as it wont fit straight, I used 1 time horizontal drifting to get this panoramic view with the ASI 174MM camera.
Registration with RegiStax5, Processing top Astra Image 3.0 SI parameters 0.8 / 18i, bottom bilateral Wavelets in Wx, Color with GIMP2

Below, same equipment, vertical AD drifting technique but without barlow.
The whole Sun but not the same high resolution ...

20150223 09:51:33UT

Processing as below but for disk only ...

20150223 10:25:05UT

Latest disk processing of 23/02/2015 almost blank Sun. Rotation with Sun N at top.
PV fluorite 102/900, Coronado SM90 (right on Halpha) +BF30, ASI174MM
4/5 of the Sun is visible on the sensor.
Camera turned at 90° from normal, for maximal smoothness of he scan the motors are stopped during the capture, the Earth provides the vertical drifting and in about 40s the whole Sun is scanned with wide top/bottom margins.
Yes ! In less than a minute the SER file is captured and ready to be registered with AS!2 an there is no painful mosaicing work to do !!
(and people who do solar Halpha mosaics know of what I am talking about ... a lot of time of efforts with sophisticated softwares)!

PC : i7 950 @ 3.95 GHz, Win7X64, 18GB RAM then recording on a 14GB RAM disk for fastest speed. After each capture, quasi full RAM disk content is moved on HDD.
Processing : AS!2 2.5.1.7Beta surface extend mode & 60 AP size, Wx, color GIMP2, cropping and rotation Irfanview.
Remember that the Sun is still low in the sky !

To be compared with this equivalent image with the STL11000M

20150219

Framing of the Sun on the sensor at somehow reduced scale ... with a flying sunspot :)

<- Both images resized ->.

Latest disk processing of 19/02/2015 Sun. Rotation with Sun N at top.
PV fluorite 102/900, Coronado SM90 (slightly moved off Halpha with one TM ring turn) +BF30, ASI174MM
4/5 of the Sun is visible on the sensor (see original B&W single frame joined).
Camera turned at 90° from normal to use AD @ guiding speed (instead of DEC moves) for covering the whole Sun with wide margins by vertical drifting during the exposure which is stopped just after.
PC : i7 950 @ 3.95 GHz, Win7X64, 18GB RAM then recording on a 14GB RAM disk for fastest speed. After each capture, quasi full RAM disk content is moved on HDD.
Processing : AS!2 2.5.1.6Beta surface extend mode & 100 AP size, Wx, color, cropping and rotation GIMP2
Result is superior to PST captures using the same technique. Remember that the Sun is still very low in the sky ! Better resolution should be achieved in Summer !

FireCapture v2.4.07 beta Settings
------------------------------------
Camera=ZWO ASI174MM
Filter=L
Profile=SUNHA
Filename=SUNHA_190215_122757.ser
Duration=51.386s
Frames captured=3011
File type=SER
Binning=no
Bit depth=16bit !
ROI=1696x1216
FPS (avg.)=58
Shutter=5.000ms
Gain=100
